Type A .060" - 0.7960" X 0.5150" Standard Valve Spring Inserts - A-204

Regis Manufacturing

$19.98
SKU:
A-204
Availability:
In Stock
Shipping:
Calculated at checkout
Size chart
Quantity:

Need Some Advice?Speak to one of our gearheads

Product Description

Type A .060" - 0.7960" X 0.5150" Standard Valve Spring Inserts - A-204

Part#: A-204/A-204RS
Reference chart below for more details of part# above.

Original VSI inserts are now available from Regis. Superior to plain shims, VSI inserts feature patented heat-retarding serrations so they correct and protect.



* Standard inserts are sold in boxes of 100 and 500.
* “S” indicates special, 25 per box.
* “HP” High-performance inserts are sold in boxes of 50.

CHOOSE THE TYPE OF INSERTS YOUR JOB REQUIRES:
Type A .060” – Copper colored. Corrects assembled height and compensates for reduced pressure from “grind-in” when using in-service valve springs.
Type B .030” – Silver colored. Compensates for loss of spring pressure, especially on new springs due to “heat-set” during break-in period.
Type C .015” – Black colored. For valve spring balancing.



See Chart below for complete list of other Valve Spring Inserts

valvespring1.jpg   valvespring2.jpg   valvespring3.jpg

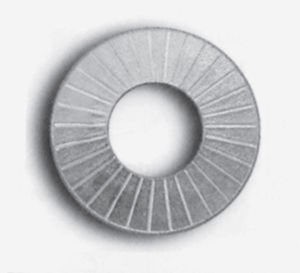

.060” Type A
Copper colored for spring in service.
Features VSI patented serrations.

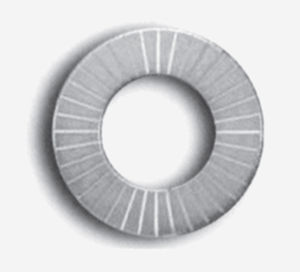

  .030” Type B
Silver colored for new springs.
Features VSI patented serrations.

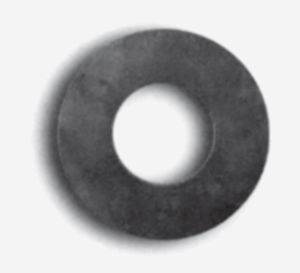

  .015” Type C
Black colored for balancing.
Blue temper steel for high performance.



      TYPE A .060”   TYPE B .030”   TYPE C .015”
O.D. I.D.   STD HP   STD HP   STD HP
0.7600 0.5780   A-204S ---   B-204S ---   C-204S ---
0.7960 0.5150   A-204 A-204HP   B-204 B-204HP   C-204 C-204HP
0.9150 0.6400   A-202 A-202HP   --- B-202HP   C-202 C-202HP
0.9700 0.4450   --- ---   --- B-108HP   --- C-108HP
1.0000 0.6880   A-101 ---   B-101 ---   C-101 ---
1.0000 0.7650   A-104 ---   B-104 ---   C-104 ---
1.1000 0.7190   A-106 ---   B-106 ---   C-106 C-106HP
1.1250 0.7190   A-300 A-300HP   B-300 B-300HP   C-300 C-300HP
1.1400 0.8120   A-203S ---   B-203S ---   C-203S ---
1.1400 0.5700   A-408 ---   B-408 ---   --- ---
1.1560 0.8280   A-407 ---   B-407 ---   --- ---
1.2180 0.8750   A-105 A-105HP   B-105 B-105HP   C-105 C-105HP
1.2500 0.6800   A-107S A-107SHP   B-107S B-107SHP   C-107S C-107SHP
1.2500 0.6250   A-107 A-107HP   B-107 B-107HP   C-107 C-107HP
1.2500 0.8750   A-201 A-201HP   --- B-201HP   C-201 C-201HP
1.2500 0.8120   A-203 A-203HP   B-203 B-203HP   C-203 C-203HP
1.3110 0.8890   A-308 ---   --- ---   --- ---
1.3120 0.9540   A-100 ---   B-100 ---   C-100 ---
1.3120 0.7650   A-302 A-302HP   B-302 B-302HP   C-302 C302HP
1.3120 0.7550   A-409 ---   B-409 ---   C-409 ---
1.3600 1.0000   A-102 A-102HP   B-102 B-102HP   C-102 C-102HP
1.3600 0.6400   A-200 A-200HP   B-200 ---   --- C-200HP
1.3750 0.7650   A-301 A-301HP   B-301 B-301HP   --- C-301HP
1.3750 0.7810   A-403 ---   B-403 ---   --- ---
1.4370 0.7850   A-305 A-305HP   B-305 B-305HP   --- C-305HP
1.4370 0.6450   A-306 A-306HP   B-306 B-306HP   B-306 B-306HP
1.4400 1.0570   A-109 ---   B-109 ---   --- ---
1.4800 0.7030   A-303 A-303HP   B-303 B-303HP   C-303 C-303HP
1.4800 0.7850   --- ---   B-410 ---   --- ---
1.5000 1.0310   A103 A-103HP   B-103 B-103HP   C-103 C-103HP
1.5000 1.0000   --- ---   --- ---   C-103S ---
1.5000 1.1560   A304 ---   B-304 ---   --- ---
1.5000 0.6450   A306S A-306SHP   B-306S B-306SHP   C-306S C-306SHP
1.5000 0.8750   A404 ---   B-404 ---   --- ---
1.5000 0.7650   --- A-602HP   --- B-602HP   --- C-602HP
1.5000 0.5620   --- A-603HP   --- B-603HP   --- C-603HP
1.6000 0.8200   A-401 ---   B-401 ---   --- ---
1.6400 0.6350   --- A-601HP   --- B-601HP   --- C-601HP
1.6500 1.1800   A-400S ---   B-400S ---   --- ---
1.6870 1.2810   --- ---   B-402 ---   --- ---
1.7500 0.8200   A-400 ---   B-400 ---   --- ---
1.7500 0.8900   A-405 ---   B-405 ---   --- ---
1.7500 1.3280   A-406 ---   B-406 ---   --- ---
1.9370 1.2500   --- A-600HP   --- ---   --- ---
